Self Diagnostic 36W LED Emergency Driver For LED Linear Lighting UL Listed

    Buy cheap Self Diagnostic 36W LED Emergency Driver For LED Linear Lighting UL Listed from wholesalers

    Buy cheap Self Diagnostic 36W LED Emergency Driver For LED Linear Lighting UL Listed from wholesalers
    • Buy cheap Self Diagnostic 36W LED Emergency Driver For LED Linear Lighting UL Listed from wholesalers

    Self Diagnostic 36W LED Emergency Driver For LED Linear Lighting UL Listed

    Ask Lasest Price
    Brand Name : ATA
    Model Number : 4-30W
    Certification : UL cUL
    Price : USD27-30/PCS
    Payment Terms : T/T, Western Union, Paypal
    Supply Ability : 500,000PCS/Month
    Delivery Time : 5-7days
    • Product Details
    • Company Profile

    Self Diagnostic 36W LED Emergency Driver For LED Linear Lighting UL Listed

    36W LED Driver Emergency/LED Driver Emergency for 36W LED Linear Lighting
    Product Description
    UL Listed self-diagnostic LED emergency driver that allows the same LED fixture to be used for both normal and emergency operation
    In the event of a power failure, it switches to the emergency mode and operates the existing fixture for 90 minutes
    The unit contains a battery, charger, and converter circuit in a single enclosure
    The unit will operate an LED array load at 10 wattswith constant power at a rated output voltage of 10V-60V
    The Constant Power design of it maintains the output wattage to the LED array even as the system voltage diminishes
    The integrated self-diagnostic circuitry will automatically conduct monthly 30-second and annual 90-minute tests to verify proper emergency capability per Life Safety Code requirements
    High-efficiency performance and complies with CEC efficiency standards
    Product Advantages
    Satisfies the periodic testing requirements in accordance with NFPA 101
    Internal self-diagnostic circuitry tests battery, charger, and load performance
    High Efficiency design meets CEC efficiency standards (CEC-400-2014-009-CMF)
    UL Listed for field installation
    Constant Power Design maintains emergency illumination through
    90-minute runtime with no light degradation
    Two-wire universal AC input
    Self-sensing output voltage operates various product types, reducing product SKUs for emergency options
    Certifications: UL, cUL
    Listed to UL924 and tested to CSA C22.2 NO.141 Field or factory installation
    High voltage output
    Low energy consumption CEC compliance
    Constant output power
    Self-testing
    Battery: Over temperture protection
    Warranty: 5 Years
    Technical Specifications
    Input Voltage: 100~347Vac 50-60Hz
    Input Current: 100mA max
    Input Power Rating: 7W max
    Output Voltage: 25-230VDC
    Output Power: 30W max
    Recharge Time: 24Hrs
    Discharge Time: ≥1.5H
    Ambient Temp: 0°C to 50°C
    Weight: 1.21 lbs(0.54kg)
    Surge protection: Line-Neutral 3KV
    Product DimensionInput VoltageOutput VoltageEmergency Output PowerBattery TypeEmergency TimeWorking Temperature

    186.17*38.09*25.18mm
    100-347Vac20-50Vdc4-30WLi-ion≥1.5H50℃
    51-80Vdc
    81-155Vdc
    156-230Vdc
    20-50Vdc4-20W
    51-80Vdc
    81-155Vdc
    156-230Vdc
    20-50Vdc4-15W
    51-80Vdc
    81-155Vdc
    156-230Vdc
    20-50Vdc4-8W
    51-80Vdc
    81-155Vdc
    156-230Vdc
    20-50Vdc4W
    51-80Vdc
    81-155Vdc
    156-230Vdc

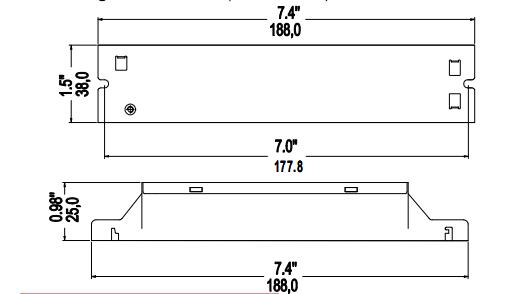

    Dimensions
    Housing: 7.4*1.5*0.98inch (188*38*25mm)
    Mounting Center: 7.0inch (177.8mm)
    Wiring Diagram
    User Manual
    Switch off power of the mains supply or respectively of the connection lead before doing any works.
    Assembly must not damage or destroy conducting paths.
    Make sure that the product is mounted on a stable, even and tilt-fixed background.
    The complete installation must be done by an electrical expert who is familiar with the valid directives.

    Quaity Control
    Stability TEST: make sure 100% of the lamps be aging test at least 48hours
    Lighting TEST: make sure 100% of the lamps be lighted before packing
    Drop TEST: make sure every single light have been well protected by box
