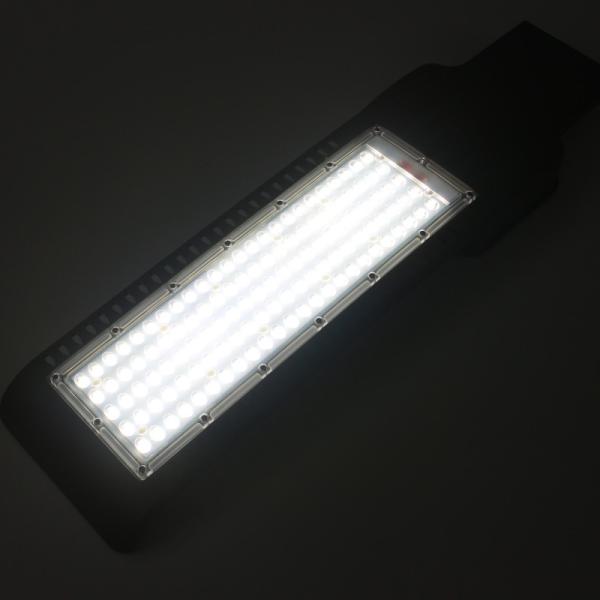

CE RoHS EMC LVD AC90-277V LED street lamp 150w 100w 50w LED street light 3 years warranty

Product Features
Integrated design of driver box and bracket, saving space and reducing air resistance to the best
With two kinds of lamp pole end cover: Φ60,Φ65mm,applications is wider
Configurable convertor with clear scale, 120°adjustable

Product Advantages
1. SMD 3030, 130LM/W
2. CE driver, 100-277VAC, 90-305V, 180-528V also available
3. ATA is the first factory owns automatic aging machines for LED Street Light in Shenzhen
4. Simple and elegant appearance, anodized housing, durable
5. Multiple lighting distributions available
6. IP68 LED Optical Module: highest waterproof rating
7. Optical lens angles meet different lighting applications, Flexible combinations of LED modules, full power range solutions
8. Modular design, air convection effect, good thermal management system, improving heat dissipation performance to long life time
9. One-piece PC lens and high-quality silicone ring for excellent airtight effect, protecting from heavy rain and dust in tunnel lighting circumstances
10. Flip-chip technology, Every LED works alone, one led damaged, it will not impact other LED working
11. Undergone a 5000hour salt spray test, which boasts outstanding resistance to corrosion
12. Approved by a professional wind tunnel test, it can be withstand a level 17hurricane
13. Material: Die-Casting Aluminum Alloy, 6063 aluminum + PC Optical lens
14. Quick waterproof connectors
15. IES files, LM-70, LM-80 reports and photometrics upon request
16. Warranty: 3years

Technical Specifications
1. PF>0.95, CRI >80Ra, THD<15%
2. Anti-thunder: 4KV
3. IK Grade: IK10
4. Surge Protection: 10KV
5. LED Junction Temperature: ≤65°C
6. Working Temperature: -40°C~+50°C
7. Humidity: 10%~90%RH
8. Material: Die-Casting Aluminum Alloy, 6063 aluminum + PC Optical lens
9. Optional Function: Daylight Sensor
10. Power: 30w/40W/60W/90W/120W/150W
11. Beam Angle: 80°*150°/80°*155°/150°

12. Diameter of Lamp Pole (mm): Φ60-Φ65

Application
Widely used in Street, Main Road, Path, Sidewalk, Square, School, Park, Garden, Residential Places, Villa, Yard, Square; Tunnel, Highway, railways Station, Dock, Stadium Hall, Square, Plant roads, Bridge, Industrial areas, Outdoor lighting places needed, etc.

Packing information

User Manual
Switch off power of the mains supply or respectively of the connection lead before doing any works.
The complete installation must be done by an electrical expert who is familiar with the valid directives.

Quaity Control
Stability TEST: make sure 100% of the lamps be aging test at least 48hours
Lighting TEST: make sure 100% of the lamps be lighted before packing
Drop TEST: make sure every single light have been well protected by box
